Pilt on illustreeriv
|

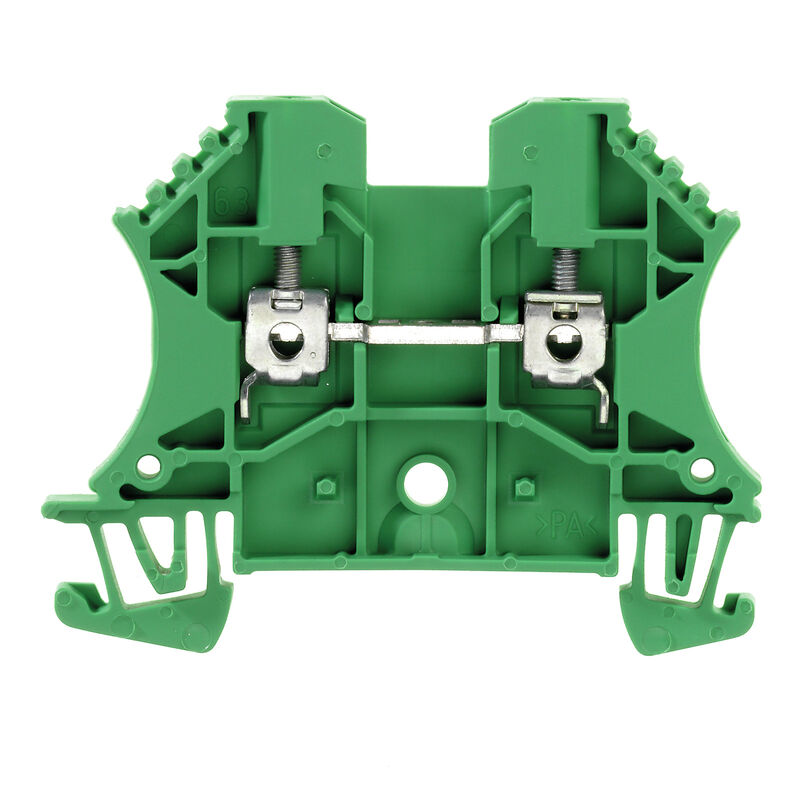

Feed-through Terminal WDU 2.5 GN, green Kood:
1020090000
Hind
€ 165,00
/pk
(€ 204,60 /pk KM-ga)
Package 100tk, unit price
1.65EUR/tk
Tootja
:
|
Saadavus:
Laos
|
Kaal:
0 g/tk
|
Maht:
0 m3/tk
|
|
|
|
|
Overview
Feed-through terminal block with screw connection in green housing, rated for 2.5mm², 24A and 800V, with 2 connections.
Electrical data
| Rated cross-section |
2.5mm² |
| Rated voltage |
800V |
| Rated DC voltage |
800V |
| Nominal current |
24A |
| Current at maximum wires |
32A |
| Rated impulse withstand voltage |
8kV |
| Power loss |
0.77W |
| Pollution severity |
3 |
Connection data
| Connection type |
Screw connection |
| Number of connections |
2 |
| Connection direction |
On side |
| Clamping range |
0.05..4mm² |
| Solid conductor |
0.05..4mm² |
| Finely stranded conductor |
0.05..4mm² |
| Ferrule conductor |
0.05..2.5mm² |
| Twin ferrules |
0.5..1.5mm² |
| AWG range |
AWG30..AWG12 |
| Stripping length |
10mm |
| Tightening torque |
0.4..0.8Nm |
| Clamping screw |
M2.5 |
| Blade size |
0.6x3.5mm |
System data
| Mounting rail |
TS35 |
| Number of potentials |
1 |
| Number of levels |
1 |
| Clamping points per level |
2 |
| Open sides |
Right |
| Type of mounting |
Snap-on |
| End cover plate required |
Yes |
Material and environmental data
| Basic material |
Wemid |
| Flammability rating |
UL94 V-0 |
| Storage temperature |
-25..55°C |
| Ambient temperature |
-5..40°C |
| Continuous operating temperature |
-60..130°C |
| RoHS |
Compliant without exemption |
| REACH SVHC |
No SVHC above 0.1wt% |
|
|
|
|
