Metallkapp CC, 800Wx2000Hx400D, raam, sile uks, tagasein, paigaldusplaat, läbiviiguplaat, lukk DoubleBit 5, IP55, MaxPro, RAL7035 hall
Pilt on illustreeriv
Metallkapp CC, 800Wx2000Hx400D, raam, sile uks, tagasein, paigaldusplaat, läbiviiguplaat, lukk DoubleBit 5, IP55, MaxPro, RAL7035 hall
Kood: 4742455001893
Hind
€ 514,40  /tk
(€ 617,28 /tk KM-ga)
Tootja :
Saadavus:
Laos
Kaal:
136.0 kg/tk
Maht:
0.7388 m3/tk
Kogus (tk):
Plus sign Minus sign

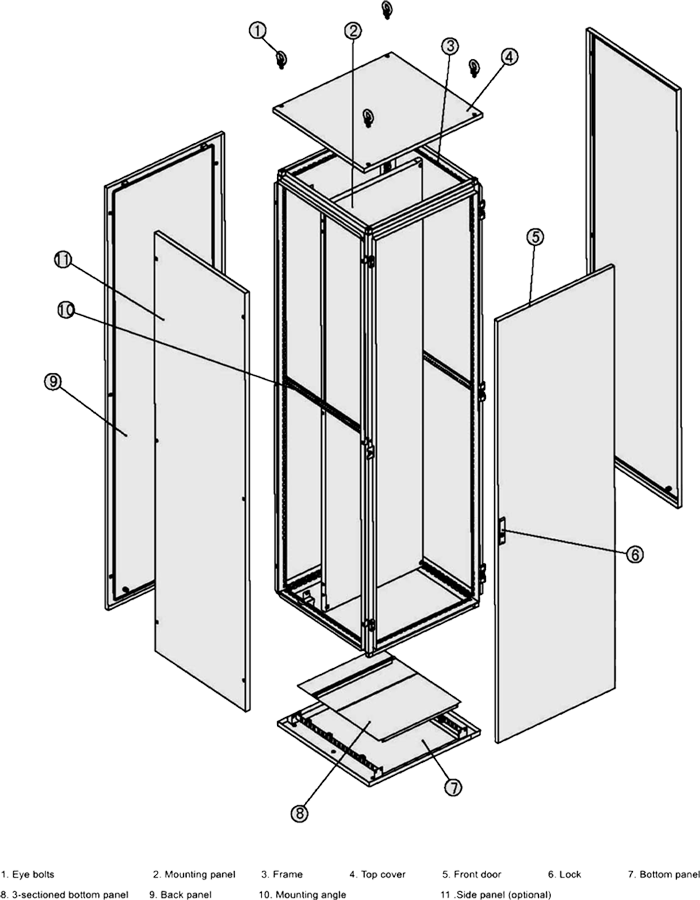

control enclosure

polyurethane gasket and earthing kit

Polyurethane gasket and earthing kit

 3 sectioned bottom panel

3 sectioned

bottom panel

 Data pocket optional

Data pocket

(optional)

 Various horizontal mounting angles optional

Various horizontal mounting angles optional

Feature
  • Strong and stable rolled profiled with integrated mounting holes (integrated size: 25mm);
  • Stable structure, exquisite image, spacious inner mounting space, common used accessories;
  • Three point bolted luxury lock, side panels (optional) and back panels are fixed by screws;
  • Door can be open to 130 degrees, can be hinged left or right;
  • All-round Polyurethane Gasket between door and frame with good sealing performance;
  • 3-sectioned bottom panel, easy cable entry;
  • M8 earthling pole mounted on the body, door and the mounting panel;
  • Adjustable mounting panel.
Degree of protection
  • Complies with IEC60529, EN60529/10.91 and GB4208-93 standard, IP55.
Material
  • SPCC cold rolled steel;
  • Thickness:
    • mounting panel: 2.5mm
    • front door: 2.0mm
    • frame: 1.5mm
    • others: 1.2mm.
Surface finish
  • Body of enclosure, frame and doors:
    • Degreased, phosphoric, powder coated, static powdered with flat coating RAL7035;
  • Mounting panel (SPCC cold rolled steel);
    • Degreased, pickling, phosporic, powder coated, static powdered with flat coating RAL2000.
Use
  • Available for mounting various industrial components, controlling and cables entry, automatic systems cable termination etc.
