Pilt on illustreeriv
|
Aegrelee 600DT, LCD, 15functions (count down)| 0.1s..10h res. 0.1s, 1CO SPDT 8A 250VAC, cv 20..240VAC/DC, 17.5mm, TS35 Kood:
600DT-CU
Hind
€ 41,20
/tk
(€ 51,09 /tk KM-ga)
Tootja
:
|
Saadavus:
Laos
|
Kaal:
0.069 kg/tk
|
|
|
|
|
|
Overview
Multifunction DIN rail timer with 15 operating functions, 9 time ranges, 3+3 digit display, front keypad setting, universal 20..240VAC/DC power supply, 1 C/O relay output ^17.5mm slim housing.
Display ^Indications
|
Display
|
3+3 digits
|
|
Indications
|
Relay ON, operating modes, Hr, Min, Sec
|
Input ^Output Specifications
|
Setting accuracy
|
±0.1% of set time or ±50ms, whichever is greater
|
|
Y contact accuracy
|
+100ms, repeat ±0.1%
|
|
Relay contact
|
1 C/O SPDT
|
|
Contact rating
|
8A 250VAC
|
Timing Functions
|
A
|
On delay
|
|
B
|
Interval
|
|
C
|
Asymmetrical cyclic OFF first
|
|
D
|
Asymmetrical cyclic ON first
|
|
E
|
Cyclic equal OFF first
|
|
F
|
Cyclic equal ON first
|
|
H
|
Pulse output
|
|
J
|
Delay on break
|
|
K
|
Delay on make/break
|
|
L
|
Interval after break
|
|
P
|
Single shot
|
|
Q
|
Retriggerable single shot
|
|
R
|
Latching relay
|
|
T
|
Delay on break with totalise
|
|
U
|
Interval with totalise
|
Timing Specifications
|
Time ranges
|
0..9.99s, 0..99.9s/min/hr, 0..999s/min/hr, 0..9:59min:s, 0..9:59hr:min
|
|
Counting direction
|
Down
|
|
Memory retention
|
Yes, selectable
|
|
Resolution
|
0.01s
|
|
Reset
|
Front key, power interruption
|
|
Reset time
|
<100ms
|
Power Supply
|
Supply voltage
|
20..240VAC/DC
|
|
Frequency
|
50/60Hz
|
|
Power consumption
|
4VA max.
|
Environmental ^Mechanical Specifications
|
Operating temperature
|
0..50°C
|
|
Storage temperature
|
-20..75°C
|
|
Humidity
|
95% RH, non-condensing
|
|

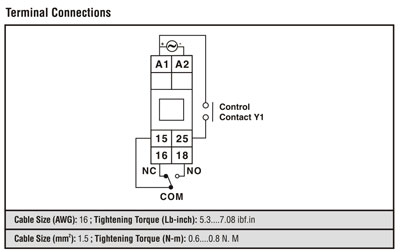

Mounting
|
DIN rail
|
|
Cable size
|
1.5mm²/ AWG16
|
|
Tightening torque
|
0.6..0.8Nm
|
|
|
|
|
|
|
