Pilt on illustreeriv

Relee DRM570730, 4CO 5A 250VAC, jp 230VAC, Weidmüller

Kood: 7760056086

Hind

€ 98,00 /pk
(€ 119,56 /pk KM-ga)
Package 20tk, unit price 4.9EUR/tk

Tootja :

Saadavus:

28 päeva

Kaal:

0.0362 kg/tk

Maht:

0 m3/tk

Relee DRM 4ül 10A 230VAC Weidmüller

Relay from the D-SERIES DRM:

2 or 4 CO contacts
Compact design
Wide range of coil voltages
Optional test button (AC red, DC blue)
Optional with integrated status display (AC red, DCgreen)and/or free-wheel diode

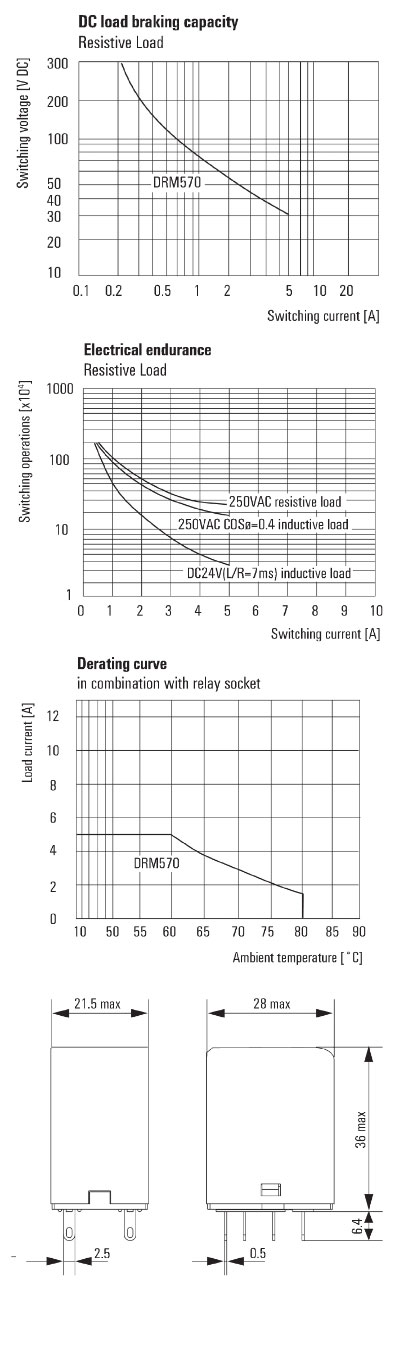

Technical data:
Dimensions and weights:	Width: 21.5 mm Height: 28 mm Depth: 36 mm Net weight: 35.65 g
Temperatures:
Humidity:	35...85 % rel. humidity, no condensation
Storage temperature:	-40°C...+70°C
Operating temperature:	-40°C...+55°C
Input:
Rated control voltage:	24 V DC
Coil resistance:	160 Ω ±10 %
Response drop-out voltage AC coil:	19.2 V / 7.2 V
Rated current AC:	62.4 mA (50Hz), 52.2 mA (60Hz)
Power rating:	1.0...1.2VA (60Hz)
Output:
Max. switching voltage, AC:	250 V
Max. switching power:	1250 VA
Switch-off delay:	< 20 ms
Max. switching frequency at rated load:	0.1 Hz
Continuous current:	5 A
Switch-on delay:	< 20 ms
Min. switching power:	12 V / 10 mA
Contact data:
No. of contacts:	4
Contact material:	AgNi 90/10
Contact resistance:	≤ 50 mΩ
Contact design:	CO contact
Mechanical service life:	AC coil 10 x 10⁶ Switching cycles, DC coil 30 x 10⁶ Switching cycles
General data:
Wire connection method:	Plug-in connection
UL 94 flammability rating:	V-0
Humidity:	35...85 % rel. humidity, no condensation
Insulation coordination:
Rated voltage:	250 V
Pollution severity:	3
Protection degree:	IP 20
Surge voltage category:	III
Connection data:
Wire connection method:	Plug-in connection
Classifications:
eClass 6.2:	27-37-16-01
