Pinge/faasikontrollirelee 900VPR-BL, 3digits LCD backlight, 3Ø-3/4W, over/under voltage ^frequency ^phase asymmetry/ failure/ sequence ^neutral loss, range 50..500VAC, delay 0..300s, 2CO 5A 250VAC, sv 85..270VAC/DC, TS35 Kood:
900VPR-BL-U-CE
Hind
€ 67,20
/tk
(€ 83,33 /tk KM-ga)
Tootja
:
|
Saadavus:
14 päeva
|
Kaal:
0.1575 kg/tk
|
Maht:
0.0002 m3/tk
|
|
|
|
|
Overview
Digital three-phase RMS voltage protection relay for monitoring voltage, frequency, phase conditions, neutral loss.
Monitoring Functions
|
Parameters
|
Under voltage, over voltage, under frequency, over frequency, phase asymmetry, phase failure, phase sequence, neutral loss
|
|
Electrical connection
|
3Ø-3W, 3Ø-4W
|
Display ^ Measurement
|
Display
|
3-digit liquid crystal display with backlight
|
|
Measuring range
|
160..520VAC depending on network selection
|
|
Operating voltage L-N
|
50..288VAC
|
|
Operating voltage L-L
|
85..500VAC
|
|
Supply voltage
|
85..270VAC/DC
|
Trip Settings
|
Under/over voltage L-L
|
85..500VAC
|
|
Under/over voltage L-N
|
50..288VAC
|
|
Under/over frequency
|
45..65Hz
|
|
Voltage asymmetry
|
5.0..30.0%
|
Time Ranges
|
Trip time delay
|
0..300s
|
|
Power-on delay
|
0.5..300s
|
|
Recovery time delay
|
0..300s
|
|
Response time
|
<120ms
|
Accuracy
|
Trip voltage
|
±1% ±2 digits
|
|
Frequency
|
±0.5% ±1 digit
|
|
Time setting
|
±5% of setting ±120ms
|
Output
|
Output contact
|
2x1 C/O SPDT
|
|
NC contact rating
|
3A@250VAC
|
|
NO contact rating
|
5A@250VAC resistive
|

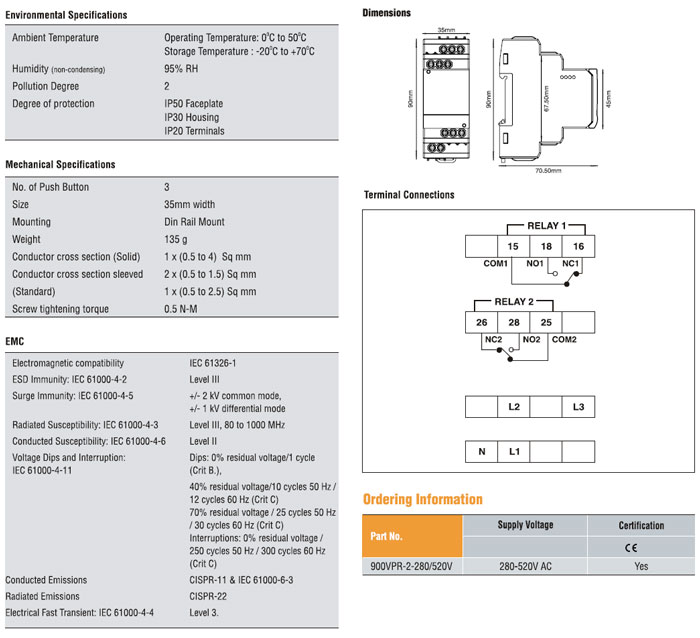

Dimensions ^ Mounting
|
Width
|
35mm
|
|
Mounting
|
DIN rail
|
|
Certification
|
CE, RoHS
|
|
|
|
|
