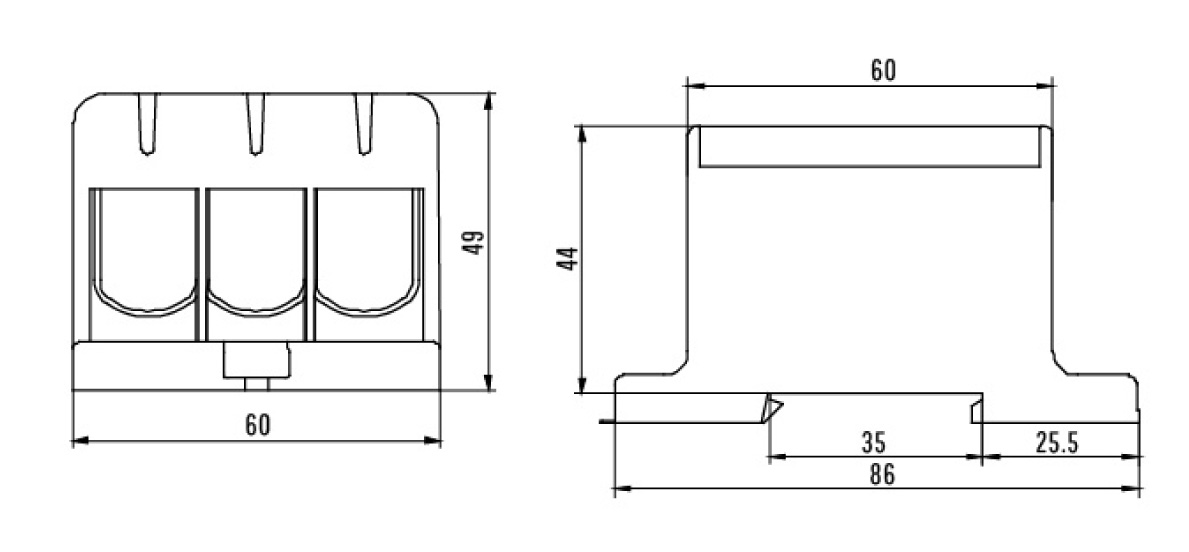

Image is illustrative
|
Tapping Terminal Al/Cu UK95/3N, 1P (6holes) 16-95mm² 440/490A 1000VAC/ 1500VDC, Hex6 12N 6..25mm² ^22Nm 35..95mm², 3pcs/pck, TS35 ^panel mount, blue Code:
1912362
Price
€13.45
/pc
(€16.68 /pc with VAT)
Manufacturer
:
|
Availability:
In Stock
|
Weight:
0.267 kg/pc
|
Volume:
0.0005 m3/pc
|
Wholesale qty:
3pc
|
|
|
|
Overview
Universal terminal blocks for distribution and installation use.
Application
Distribution terminal block for mounting on DIN rails or mounting plates, for installation distributors and meter cabinets according to VDE0603.
Standards
VDE0611-1:2010-03, EN60947-7-1:2009, low-voltage switchgear and controlgear, terminal blocks for copper conductors.
Materials
| Terminal body |
Aluminium, tinned |
| Clamping screws |
Steel, galvanized |
| Insulating housing |
Plastic PA-66, impact-resistant, flame-retardant |
| Continuous operating temperature |
120°C |
Electrical
| Rated insulation voltage |
690VAC/DC, overvoltage category IV, Uimp=8kV, pollution degree 3 |
| Rated insulation voltage |
1000VAC, 1500VDC, overvoltage category II, Uimp=8kV, pollution degree 2 |
| Max operating temperature |
70°C |
Mounting/ protection
| Mounting |
DIN rail TS35 according to EN50022, EN60715 or screw mounting M5 |
| Touch protection |
IP20, finger-safe |
| Safety |
Rounded corners |
Environment
RoHS compliant
|
|
|
|
