Image is illustrative
|
Keystone Jack RJ45 cat6 Code:
4742455000360
€1.10
/pc
(€1.36 /pc with VAT)
|
Availability:
In Stock
|
Weight:
0.01 kg/pc
|
Volume:
0 m3/pc
|
Wholesale qty:
10pc
|
|
|
|

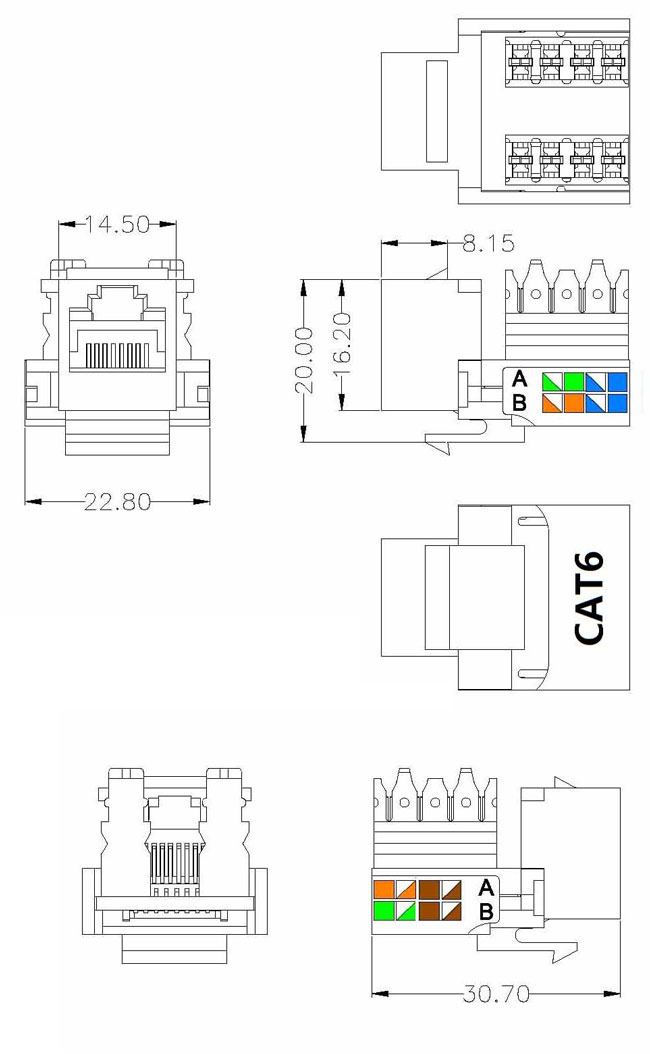

Keystone Jack RJ45 cat6
| |
|
|
| |
| Voltage rating: |
125 VAC RMS |
| Current rating: |
1.5 AMP |
| Contact resistance: |
100 milliOhms max |
| Insulation resistance: |
1000 megaOhms min @ 500 VDC |
| Dielectrical strenght: |
750 VAC RMS 60Hz, 1 min |
| Storage: |
-40°C to +85°C |
| Operation: |
0°C to +70°C |
| Housing material: |
PC |
| Insert material: |
Flame retardancy PC |
| PCB material: |
FR-4 = 1.6 mm |
| Contact material: |
phosphor bronze stamp pin T=0.35mm |
| IDC contact material: |
phosphor bronze T=0.80mm with tin plating |
| RJ45 jack life: |
750 times min |
| IDC life: |
200 times min |
| Wire: |
AWG 22~24 |
|
|
|
