900ELR-2| Earth Leakage Relay, 3digits LCD backlight, 1Ø-2W/ 3Ø-3/4W, range (CBCT) 10mA..30A, trip delay 0..99.9s, 2CO 5A 250VAC, sv 230VAC, TS35 Code:
900ELR-2-230-CU
Price
€76.00
/pc
(€94.24 /pc with VAT)
Manufacturer
:
|
Availability:
14 days
|
Weight:
0.2279 kg/pc
|
Volume:
0.0002 m3/pc
|
|
|
|
|
Overview
Digital earth leakage relay for monitoring leakage current in single-phase ^ three-phase electrical systems. The relay provides adjustable trip settings, alarm outputs, time delays ^ CBCT connection monitoring.
Features
|
Measurement
|
True RMS earth leakage current
|
|
Electrical systems
|
1Ø-2 wire, 3Ø-3 wire, 3Ø-4 wire
|
|
CBCT monitoring
|
Connection error detection
|
|
Alarm indications
|
Pre-warning alarm, trip, CBCT error
|
|
Reset
|
Selectable automatic or manual
|
|
Latching
|
Selectable
|

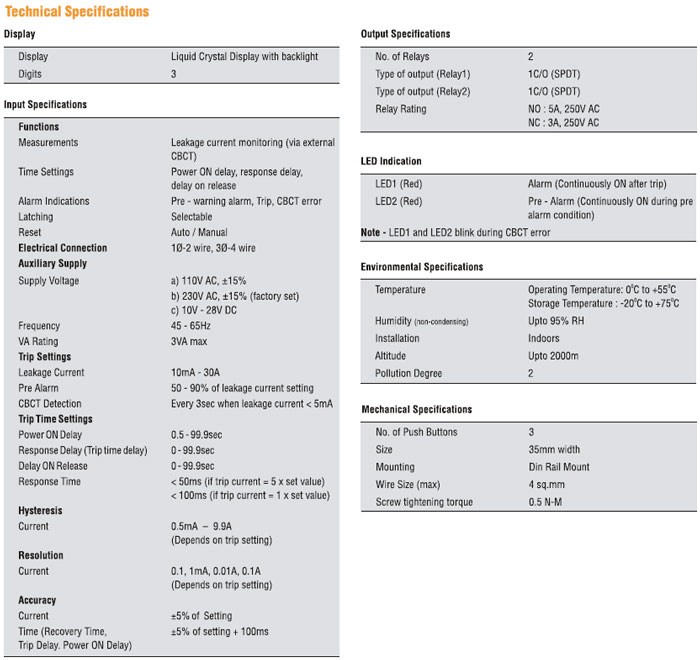

Measurement Specifications
|
Leakage current setting
|
10mA..30A
|
|
Pre-alarm setting
|
50..100% of leakage current setting
|
|
Display current range
|
4mA..30A
|
|
Current accuracy
|
±5% of setting
|
|
Hysteresis
|
5..40%
|
|
Current resolution
|
0.1mA, 1mA, 0.01A, 0.1A
|
Time Settings
|
Power ON delay
|
0.5..99.9s
|
|
Trip time delay
|
0..99.9s
|
|
Recovery time delay
|
0..99.9s
|
|
Time accuracy
|
±5% of setting ±100ms
|
|
Response time
|
<30ms at 5x setting, <50ms at 1x setting
|
Output Specifications
|
Number of relays
|
2
|
|
Relay output
|
1 C/O SPDT per relay
|
|
Normally open contact
|
5A 250VAC
|
|
Normally closed contact
|
5A 250VAC
|
Auxiliary Supply
|
Supply voltage
|
230VAC or 110VAC
|
|
Frequency
|
50..60Hz
|
|
Power consumption
|
3VA max.
|
Environmental Specifications
|
Operating temperature
|
0..50°C
|
|
Storage temperature
|
-20..70°C
|
|
Humidity
|
95% RH, non-condensing
|
|
Degree of protection
|
IP20
|
|
Product standard
|
IEC 60947-2
|
Mechanical Specifications
|
Mounting
|
35mm DIN rail
|
|
Dimensions
|
35x90x70.5mm
|
|
Screw tightening torque
|
0.5Nm
|
|
|
|
|
